| General | |
| CPU | Intel®8th/10th Whiskey lake-U&Coffeelake-U&Cometlake Processor |
| Chipset | Intel® SOC |
| Memory | 2*SO-DIMM DDR4 2666MHZ Max 64GB |
| Storage | 1*SATA3.0 1*M.2 Key M (Supports SATA3 and PCIe Gen3 x4 for SSD) |
| Expansion Interface | 1*M.2 Key E （Supports WiFi+Bluetooth extension） 1*M.2 Key B (Supports 3G/4G/5G expansion) 1*SIM card slot |
| BIOS | AMI BIOS |
| System | Windows 10/11 32bit/64bit/Linux |

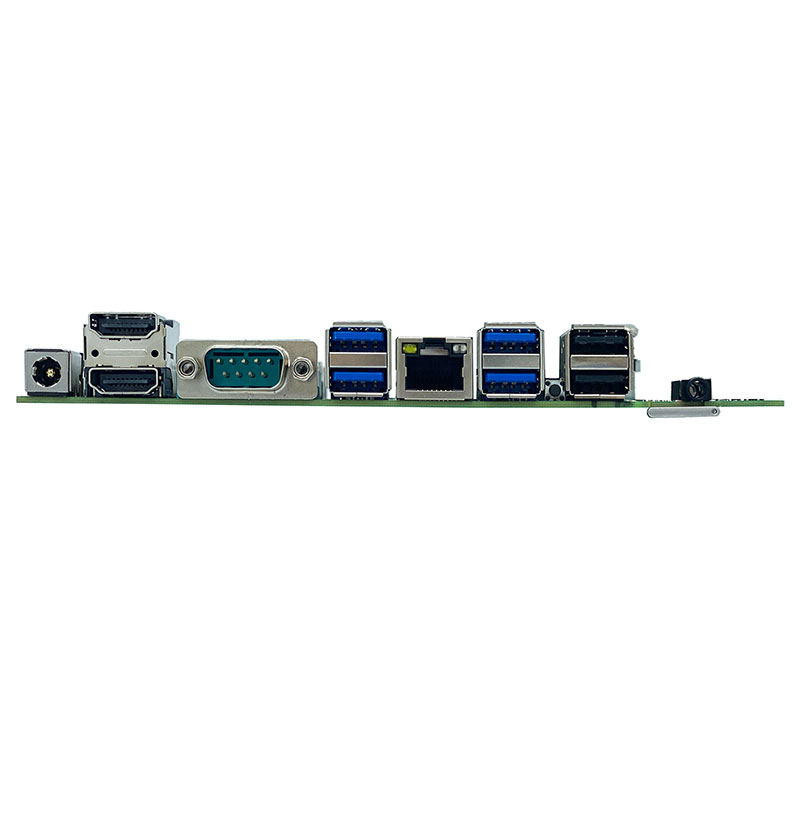

| I/O Interface | |
| Ethernet | 1*Realtek® RTL8111 1Gbps Ethernet Controller，RJ45 |
| Serial | 4*COM232 |
| USB | 6*USB3.0；5*USB2.0 |
| Audio | Onboard audio decoding controller ALC897 + NS4251 default power amplifier support 3 w @ 4 Ω; 1.7W@8Ω max |
| Others | 1*HDCIN Header 1*HCOM1 Header 1*F_AUDIO Header 1*HSPK Header 1*JME Header 2*F_USB2.0 Header（Extensible 3*USB2.0） 1*C_FAN Header 1*S_FAN Header 1*F_PANEL1 Header 1*C_USB_CON Header(Extensible 2*USB2.0+3*COM2~4+PSON+2*GPIO) 1*LVDS_EDP Header 1*INVT1 Header 1*BKCL Header 1*SATA3.0 interface 1*HD_PWR Header 1*JATX Header 1*DEBUG Header |
| Display | |
| Display Interface | 2*HDMI、LVDS/EDP1(Support 3 display synchronous/asynchronous output) |
| Mechanical & Environment | |
| Dimension | 170X170MM |
| Power Input | DC 12V-24V input power supply |
| Temperature | Operation: 0℃~60℃, Storage: -20℃~75℃ |
| Relative Humidity | 0% ~ 95%, non-condensing |

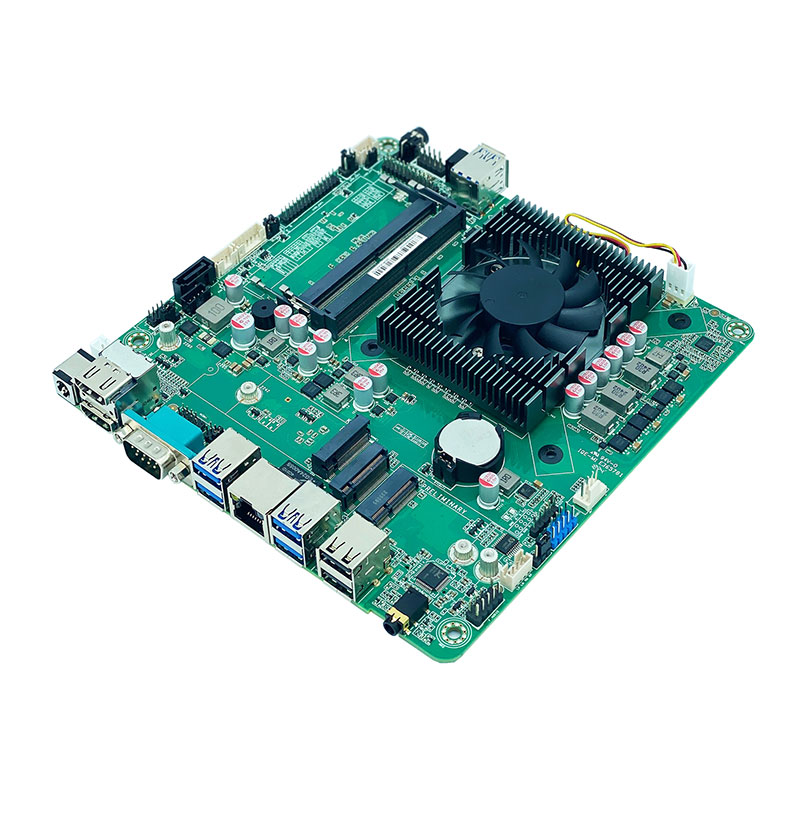

WK-WHL-4CAIO
processor：Intel®8th/10th Whiskey lake-U&Coffeelake-U&Cometlake Processor
chipset：Intel® SOC
Display: Intel® UHD Graphics
memory：2*SO-DIMM DDR4 2666MHZ Max 64GB
Display output：2*HDMI、LVDS/EDP1(Support 3 display synchronous/asynchronous output)
storage：1*SATA3.0；1*M.2 Key M (Supports SATA3 and PCIe Gen3 x4 for SSD)
USB:6*USB3.0；5*USB2.0
supports 4*COM232
On board 1*RTL8111 gigabit network card
Expansion slot：1*M.2 Key E （Supports WiFi+Bluetooth extension）
Expansion slot：1*M.2 Key B (Supports 3G/4G/5G expansion) 1*SIM card slot
Specification Parameters
