| General | |
| CPU | Intel® CoreTM Ultra Processor Meteor Lake (Ultra5-125U/Ultra7-165U/Ultra5-125H)；FCBGA2049 |
| Chipset | Intel® SOC |
| Memory | 2*SO-DIMM DDR5 5600MT/s Max 96GB |
| Storage | 1*SATA3.0 1*M.2 Key M (Support SATA3 and PCIe Gen4 x4 for SSD) |
| Expansion Interface | 1*M.2 Key E （Supports WiFi+Bluetooth extension, CNvi and PCIe WiFi6） 1*M.2 Key B (Supports 3G/4G expansion, and 5G is optional) 1*SIM card slot |
| BIOS | AMI BIOS |
| System | Windows 10/11 32bit/64bit/Linux |

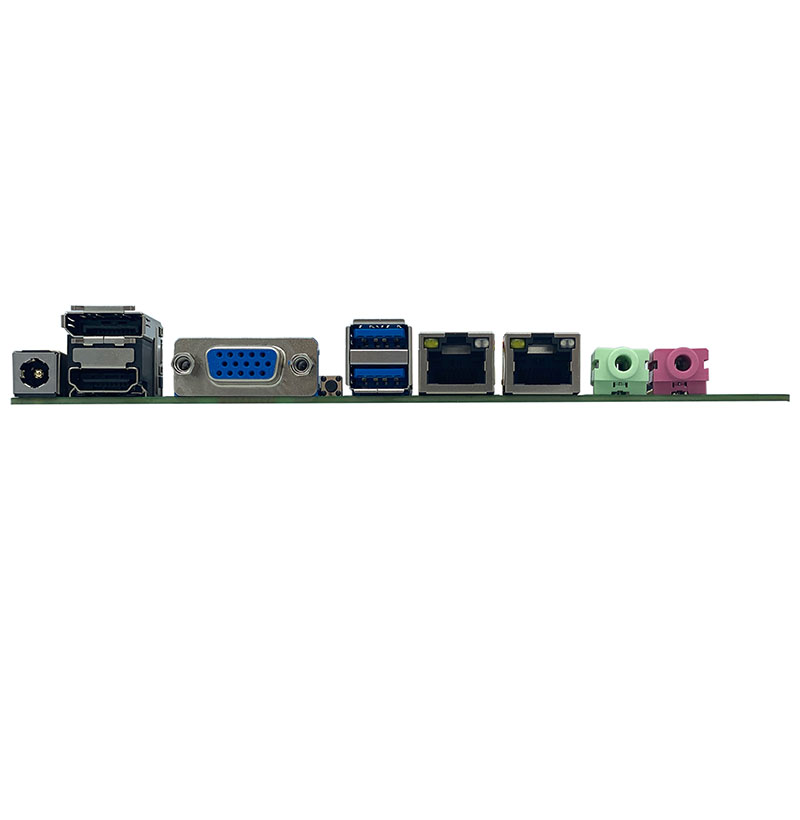

| I/O Interface | |
| Ethernet | 1/2*Realtek® RTL8111 1Gbps Ethernet Controller，RJ45 |
| Serial | 6*COM232 （COM2/COM3 supports RS232/485 as an option,RS422 is optional） |
| USB | 4*USB3.2；6*USB2.0 |
| Audio | Onboard audio decoding controller ALC897 + NS4251 default power amplifier support 3 w @ 4 Ω; 1.7W@8Ω max |
| Others | 1*HDCIN Header 6*COM232 Header 1*JVGA Header 3*USB2.0 Header （Expandable 6*USB2.0；F_USB1、USB20_1/USB20_2 Co-lay） 1*F_USB31_1 Header （Expandable 2*USB3.2） 1*F_AUDIO Header 1*HSPK1 Header 2*INVT Header 1*SATA3.0 interface 1*HD_PWR Header 1*LVDS_EDP1 Header 1*LVDS_EDP2 Header 1*HLPT_GPIO Header 1*BKCL Header 1*JATX_SEL Header 1*F_PANEL Header 1*PS/2 Header 1*JME Header 1*CPU _FAN Header 1*SYS_FAN Header |
| Display | |
| Display Interface | LVDS1/EDP1、LVDS2/EDP2、HDMI+DP/(HDMI)、VGA(DB9 COM)(Support 4 display synchronous/asynchronous output) |
| Mechanical & Environment | |
| Dimension | 170X170MM |
| Power Input | DC 12V-19V input power supply |
| Temperature | Operation: 0℃~60℃, Storage: -20℃~75℃ |
| Relative Humidity | 0% ~ 95%, non-condensing |

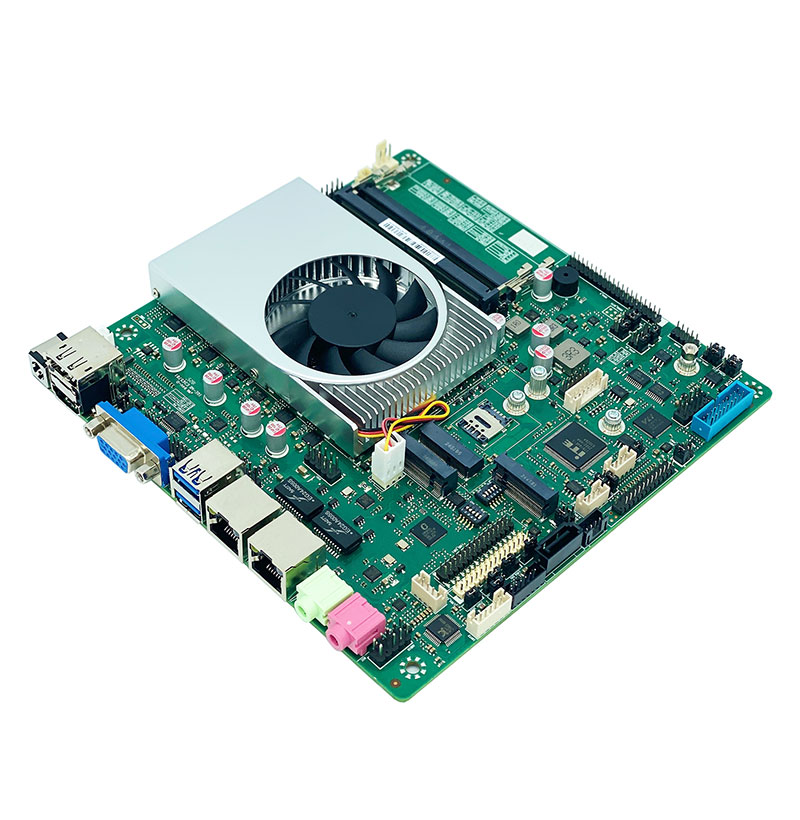

WK-MTLB0-6C2L
Intel® CoreTM Ultra Processor Meteor Lake (Ultra5-125U/Ultra7-165U/Ultra5-125H)；FCBGA2049；Intel® SOC；2*SO-DIMM DDR5；4*USB3.2；6*USB2.0；1*SATA3.0；6*COM232；3*M.2
processor：Intel® CoreTM Ultra Processor Meteor Lake (Ultra5-125U/Ultra7-165U/Ultra5-125H)；FCBGA2049
chipset：Intel® SOC
Display: Intel® Graphics
memory：2*SO-DIMM DDR5 5600MT/s Max 96GB
Display output：LVDS1/EDP1、LVDS2/EDP2、HDMI+DP/(HDMI)、VGA (Support 4 display synchronous/asynchronous output)
storage：1*SATA3.0；1*M.2 Key M (Support SATA3 and PCIe Gen4 x4 for SSD)
USB:4*USB3.2；6*USB2.0
supports 6*COM232 （COM2/COM3 supports RS232/485 as an option,RS422 is optional）
On board 1/2 * RTL8111 gigabit network card
Expansion slot：1*M.2 Key E （Supports WiFi+Bluetooth extension, CNvi and PCIe WiFi6）
Expansion slot：1*M.2 Key B (Supports 3G/4G expansion, and 5G is optional) 1*SIM card slot
